SJ-2 SJ-2s SJ-3S SJ-3SS SJ-4MS SJ-4SS
——

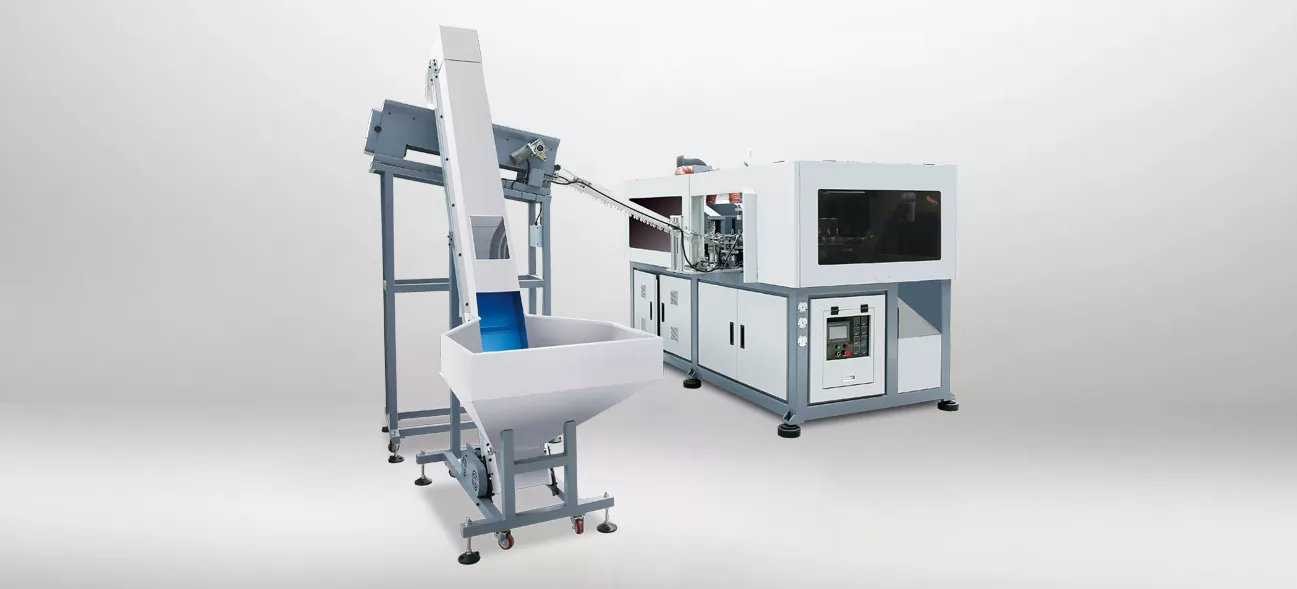

6-10L automatic blow molding machine
Features：
1.Adopt touch-type color HMl system,easy to operate.
2.Bottle outlet system is able to add a lin king unit which can connect with conveyor system and transmifinished bottes directlyto the rear process
3.Unique machine combination design facilitates performs mechanically fed or manually ,insertedoylabors,maximize machine's superiority.
4.Bottle outlet system is able to add a linking unit and combine with conveyor systemto connect to fling machine,hence reduce bottles' secondary pollution and save labors.
Main Data
Unit | SJ-2 | SJ-2S | SJ-3S | SJ-3SS | SJ-4MS | SJ-4SS | |
Theoretical output | Pcs/hr | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 |
| Max neck size | mm | 38 | 38 | 38 | 38 | 38 | 38 |
Volume | L | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Max. height | mm | 320 | 320 | 320 | 320 | 300 | 320 |
Max. diameter | mm | 105 | 105 | 105 | 105 | 70 | 105 |
Number of cavities | / | 2 | 2 | 3 | 3 | 4 | 4 |
Power | 220-380V 50-60HZ | 220-380V 50-60HZ | 220-380V 50-60HZ | 220-380V 50-60HZ | 220-380V 50-60HZ | 220-380V 50-60HZ | |
| Heating power | kw | 60 | 60 | 80 | 80 | 80 | 80 |
Total power | KW | 63 | 64.5 | 84.5 | 88 | 88 | 90 |
Main body dimension(LxWxH) | M | 2.7X1.6X2.2 | 2.7X1.6X2.2 | 3.3X1.9X2.2 | 3.3X1.9X2.2 | 3.3X1.9X2.2 | 4.6X1.6X2.2 |
| Main body weight | KG | 2200 | 2200 | 2600 | 2600 | 2600 | 4000 |
