SJ-2W SJ-1W SJ-1-20
——

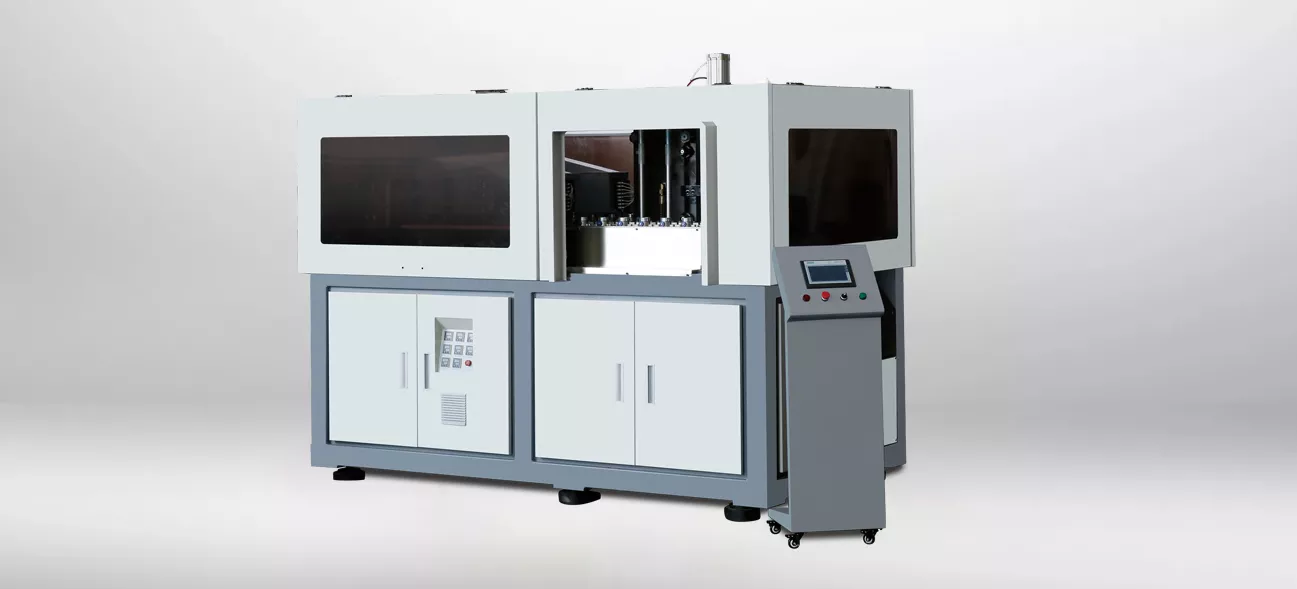

Hand plugged automatic blow molding machine
Features：
1 .This model can blow PET carbonated beverage bottles, mineral water, pesticide bottlescosmetic bottles and jars.2.Manual preform loading, automatic bottle blowing, no need for technical trainingtheory for operators.
3.The output is up to 1400-2000 pcs per hour, with low cost and stable performance
Main Data
Unit | SJ-2W | SJ-1W | SJ-1-20 | |
Theoretical output | Pcs/hr | 1200 | 600 | 600 |
| Max neck size | mm | 150 | 150 | 90 |
Volume | L | 3.0 | 5.0 | 20.0 |
Max. height | mm | 320 | 360 | 490 |
Max. diameter | mm | 150 | 180 | 300 |
Number of cavities | / | 2 | 1 | 1 |
Power | 220-380V 50-60HZ | 220-380V 50-60HZ | 220-380V 50-60HZ | |
| Heating power | kw | 64 | 32 | 102 |
Total power | KW | 67 | 35 | 105 |
Main body dimension(LxWxH) | M | 2.7X1.6X2.2 | 2.7X1.6X2.2 | 3.3X1.9X2.2 |
| Main body weight | KG | 2200 | 2200 | 2600 |
