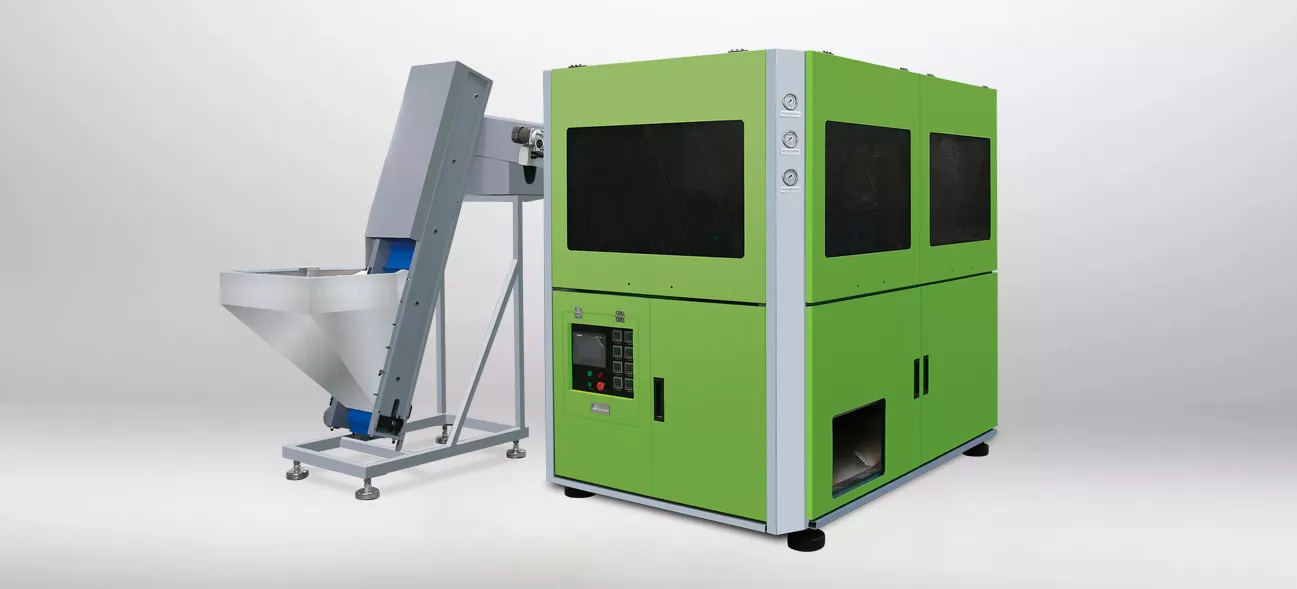

OGM-3
——
6-10L automatic blow molding machine
Features：
1. Blow 0.5-1.5 liters of PET regular bottles.
2. Practical PLC microcomputer control system, time control can be accurate 0.01 seconds
3. Infrared lamp heating, strong penetration, preform rotation heating, track rotation, uniform heating, fast and reliable.
4. Different heating lamps are equipped with independent temperature control devices to ensure that the preforms are ideal
heating effect.
5. It has a unique oven design, the spacing between the bottles is tight when heating, and the spacing is changed according to the size of the bottle when blowing, so as to shorten the drying channel and reduce energy consumption.
6. Easy to install, start-up.
Main Data
Unit | OGM-3 | |
Theoretical output | Pcs/hr | 2200 |
| Max neck size | mm | 38 |
Volume | L | 2.0 |
Max. height | mm | 360 |
Max. diameter | mm | 100 |
Number of cavities | / | 3 |
Power | 220-380V 50-60HZ | |
| Heating power | kw | 32 |
Total power | KW | 33 |
Main body dimension(LxWxH) | M | 2.3X1.5X2.2 |
| Main body weight | KG | 1650 |
