OGB-3S OGB-4S OGB-4SS OGB-6S
——

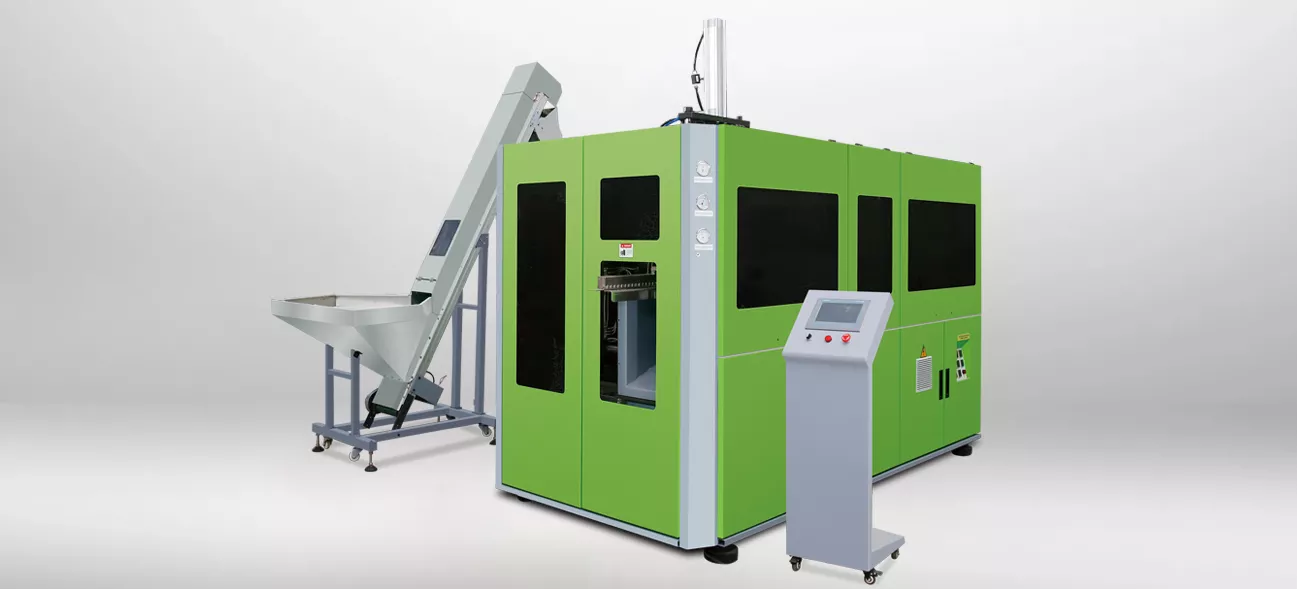

2L automatic blow molding machine
Features：
1.he machine adopts human-computer interface to controlthe whole working procecures, auto-oading, auto blowing, auto dropoing. Actioncylinders are allassembled with magnetic induction switches.Connect with Plc to control every step and test every cylinder. Next action willcontinueafter the former step done, lf former step is not finished, alarm automaticallv and do not work, Plc displavs problem position. 2.Fast speed, accurate position, smooth action. 3 .Accordina to special demand, adoot cross double ciank presed clamping, with strong clamping force. Mould open stroke can be adjustable according to the bottle size to save the time. 4.Farinfrared heaterlamps have strong penetrations , preforms are heated unlformly whle rotating, plc or electronic pressure aclustor controls each aroup of temperature separately. 5 .Paricular pre-heater design makes prefrom close whle heating. change space, shoten heating tunnel and reduce energy consumption according to the bottle size while blowing 6.The air supply system consists of sight blow, high pressure blow, low pressure actions, to supply enough ai for dliferent products. .Relieble and special valve desian make all the air system clear. 8.Servo motor saves more electricrty and gets more output. 9.Automatic lubrication oil device protects the machine well. 10. Production workmanshil processis fuly automotic to make bes aualty and polution-ftee. it holds less investment hich eficlency, easy operation simple repair, safety etc

Main Data


Unit

OGB-3SOGB-4SOGB-5SOGB-6S

Theoretical output

Pcs/hr

3500450060006000
Max neck sizemm38383838

Volume

L

2.02.02.02.0

Max. height

mm

350350350350

Max. diameter

mm

100100100100

Number of cavities

/

3444

Power


220-380V 50-60HZ220-380V 50-60HZ220-380V 50-60HZ220-380V 50-60HZ
Heating powerkw646472.564

Total power

KW

67677464

Main body dimension(LxWxH)

M

3.0X1.5X2.23.0X1.5X2.23.0X1.5X2.23.0X1.5X2.2
Main body weight

KG

2750345034504100
