OGB-5SS OGB-6SSM OGB-6SS
——

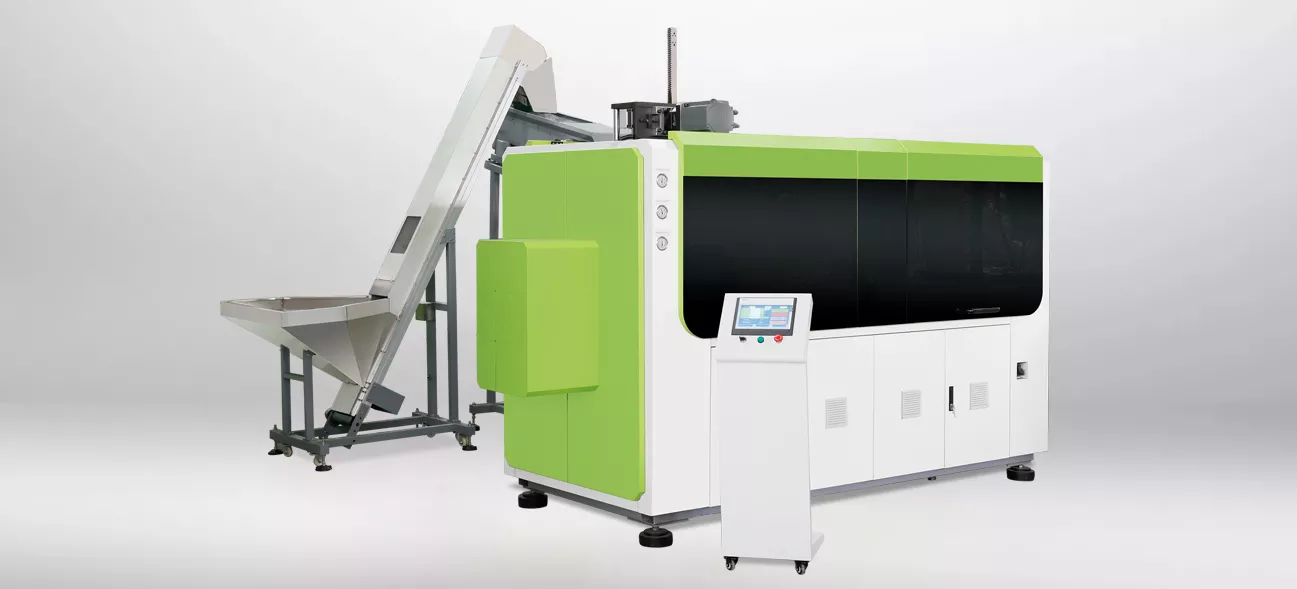

1-1.5L automatic high-speed blow molding machine
Features：
1.Horizontal rotation transfer system make the construction and maintance more easy, reduce cost of spare part change
2.Compact preform heating distance design for efficient heating and reduce energy consumption.
3.Mould closing adopts CAl linkage, no chain plate pin shaft make it small volume and long lift.
4.Using hard claw to catch the preform and bottle, resistance to wear with long life.
5.servo motor drive system with synchronized base blow mould for fast response operation, precision blowing valve for hioh output
6.stainless steel pipe make the air more clean without pollution.
7.slip for bottle mould make the installation more easy.
8.Touch-panel control system for simple operation with 9 inch LCD screen
Main Data
Unit | SJ-CP6 | SJ-CP7M | SJ-CP7 | |
Theoretical output | Pcs/hr | 7500 | 9000 | 9000 |
| Max neck size | mm | 38 | 38 | 38 |
Volume | L | 1.5 | 1.0 | 1.5 |
Max. height | mm | 360 | 300 | 360 |
Max. diameter | mm | 95 | 80 | 95 |
Number of cavities | / | 5 | 6 | 6 |
Power | 200-380V 50-60HZ | 200-380V 50-60HZ | 200-380V 50-60HZ | |
| Heating power | kw | 48 | 48 | 48 |
Total power | KW | 58 | 58 | 58 |
Main body dimension(LxWxH) | M | 3.3X1.4X2.2 | 3.3X1.4X2.2 | 3.3X1.4X2.2 |
| Main body weight | KG | 3500 | 3500 | 3500 |
