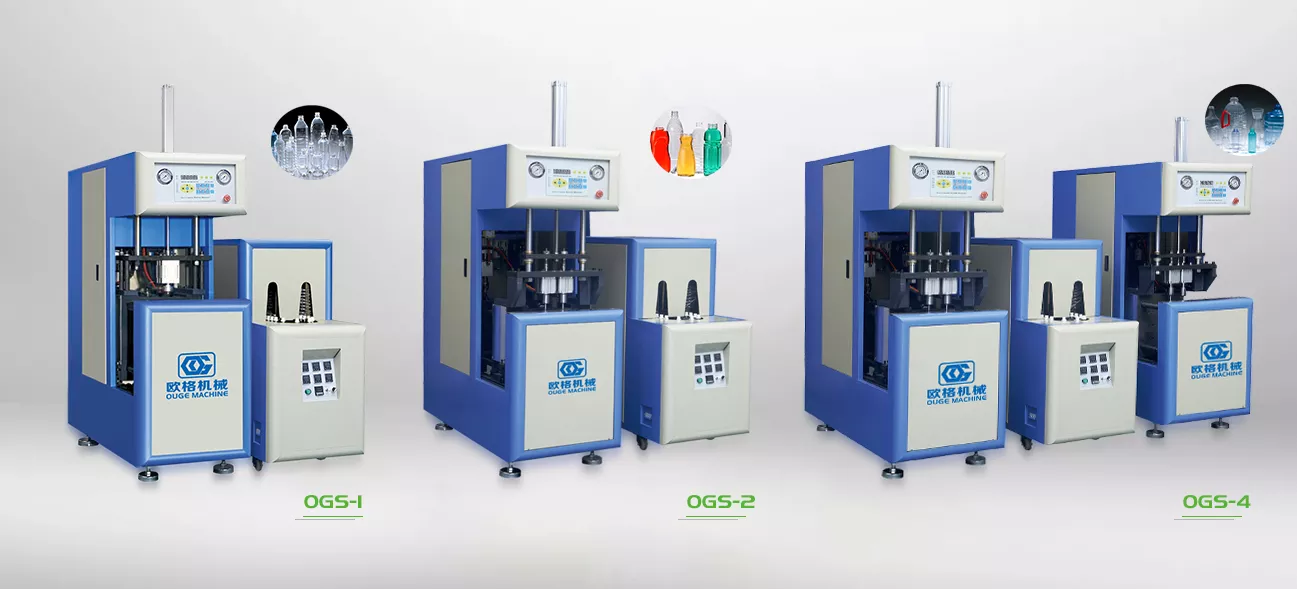

OGS-1 OGS-2 OGS-4
——
Semi-automatic Blow Moulding Machine
Features：

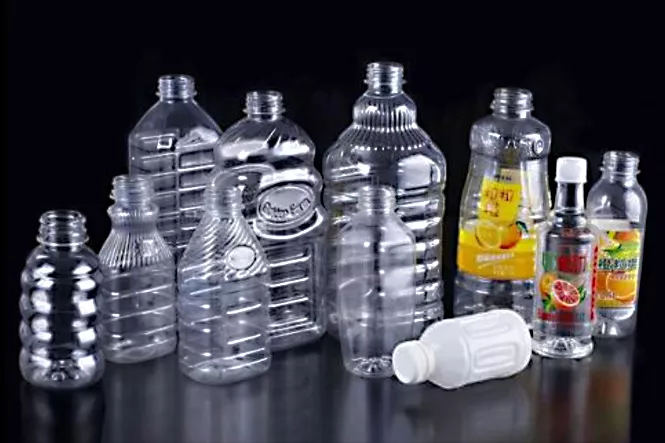

Controlled by a microcomputer, the technical parameters involved can be controlled more accurately.After process improvement, the formed PET bottle can withstand a temperature of 95°Cwhich solves the problem of traditional food and beverage packaging.
Main Data
Unit | OGS-1 | OGS-2 | OGS-4 | |
Theoretical output | Pcs/hr | 200-900 | 900 | 1800 |
| Max neck size | mm | 90 | 38 | 38 |
Volume | L | 7.0 | 3.0 | 3.0 |
Max. height | mm | 360 | 360 | 360 |
Max. diameter | mm | 90 | 120 | 120 |
Number of cavities | / | 1.2 | 2 | 2 |
Power | KW | 220-380V/50-60Hz | 220-380V/50-60Hz | 220-380V/50-60Hz |
Heating power | KW | 9.6 | 9.6 | 38.4 |
Main body dimension(LxWxH) | 11 | 11 | 40 | |
Main body weight | M | 1.5X0.65X2.0 | 1.5X0.65X2.0 | 1.5X0.65X2.0 |
Heater dimension | KG | 550 | 530 | 530 |
| Total power | M | 1.4X0.6X1.4 | 1.4X0.6X1.4 | 1.4X0.6X1.4 |
Heater weight | KG | 185 | 185 | 230 |
OGS-1-10 OGS-1-20
——
Features：
Controlled by a microcomputer, the technical parameters involved can be controlled more accurately.After process improvement, the formed PET bottle can withstand a temperature of 95°Cwhich solves the problem of traditional food and beverage packaging.
Main Data
Unit | OGS-1-10 | OGS-2-5 | OGS-1-20 | |
Theoretical output | Pcs/hr | 150-400 | 300-500 | 90-200 |
| Max neck size | mm | 120 | 48 | 120 |
Volume | L | 10.0 | 5.0 | 20.0 |
Max. height | mm | 500 | 360 | 550 |
Max. diameter | mm | 220 | 210 | 300 |
Number of cavities | / | 1-2 | 2 | 1-2 |
Power | KW | 220-380V/50-60Hz | 220-380V/50-60Hz | 220-380V/50-60Hz |
Heating power | KW | 38.4 | 32 | 64 |
Main body dimension(LxWxH) | 40 | 33 | 66 | |
Main body weight | M | 1.75X0.65X2.0 | 1.9X0.9X2.2 | 1.75X0.78X2.0 |
Heater dimension | KG | 900 | 1300 | 1250 |
| Total power | M | 1.8X0.6X1.4 | 1.8X0.6X1.6 | 2.7X0.7X1.6 |
Heater weight | KG | 230 | 230 | 370 |
