SJ-CP6 SJ-CP7M SJ-CP7 SJ-CP8M SJ-CP8 SJ-CP9M
——

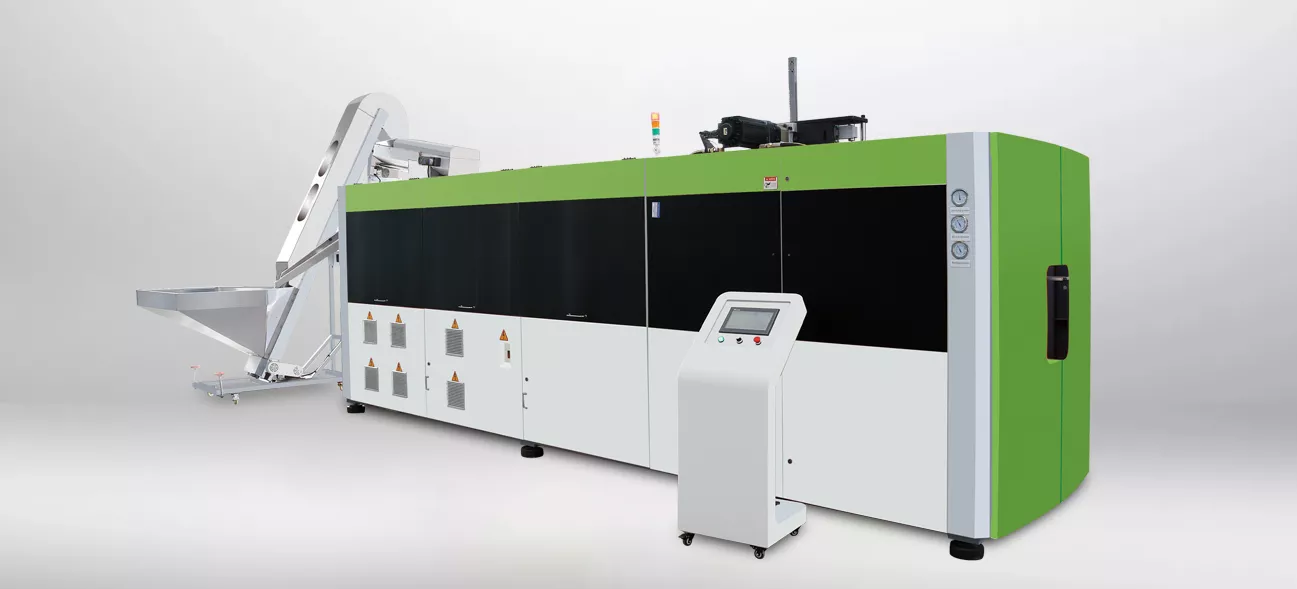

1-1.5L Linear Full Servo Blow Molding Machine
Features：
1.FEEDING SYSTEM
Continuous and high speed preform feeding system.Multiple protection device for precise preform feeding
2.TRANSFER AND FETCH SYSTEM
Servo motor driven preform transfer system for quick transfer andprecise preformlocating
3.BLOWING AND CLAMPING SYSTEM
Servo motor driven system with synchronized base blow mold for fast
response operation.
Precision electromagnetic valves for fast responding time and highvolume production.
Main Data
Unit | SJ-CP6 | SJ-CP7M | SJ-CP7 | SJ-CP8M | SJ-CP8 | SJ-CP9M | |
Theoretical output | Pcs/hr | 13500 | 16000 | 16000 | 18000 | 18000 | 20000 |
| Max neck size | mm | 30 | 30 | 30 | 30 | 30 | 30 |
Volume | L | 1.5 | 1.0 | 1.5 | 1.0 | 1.5 | 1.0 |
Max. height | mm | 350 | 300 | 350 | 300 | 350 | 300 |
Max. diameter | mm | 95 | 80 | 95 | 80 | 95 | 80 |
Number of cavities | / | 6 | 7 | 7 | 8 | 8 | 9 |
Power | 200-380V 50-60HZ | 200-380V 50-60HZ | 200-380V 50-60HZ | 200-380V 50-60HZ | 200-380V 50-60HZ | 200-380V 50-60HZ | |
| Heating power | kw | 96 | 96 | 96 | 96 | 96 | 96 |
Total power | KW | 120 | 120 | 120 | 120 | 120 | 120 |
Main body dimension(LxWxH) | M | 5.2X1.8X2.3 | 5.2X1.8X2.3 | 5.2X1.8X2.3 | 5.2X1.8X2.3 | 5.2X1.8X2.3 | 5.2X1.8X2.3 |
| Main body weight | KG | 5000 | 5000 | 5500 | 5500 | 6000 | 6000 |
